Flexible Duct Single Side Polyester+AL Foil Laminated Film Material

Name: Flexible Duct Single Side PolyesterAL Foil Laminated Film Material
Brand: Yongsheng
Price: 2900 USD

Wholesale Flexible Duct Single Side Polyester+AL Foil Laminated Film Material from china suppliers

Brand Name : Yongsheng

Model Number : 1050,1060,3003,5052,6061

Certification : ISO, RoHS, etc

Place of Origin : Henan Province , China

MOQ : 1ton

Price : 2900-3100 sud/ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7-15work days

Packaging Details : Standard Seaworthy Wooden Pallet Packing

Color : Sliver

Slitting Width : ≤1600mm

Inner Diameter : 38/53/76/152mm

Outside Diameter : ≤700 mm

AL Thickness : 0.006~0.05 mm

PET Thickness : 0.012~0.07 mm

Supply Ability : 5000 tons/month

Contact Now

Flexible Duct Single Side Polyester+AL Foil Laminated Film Material

A high-performance composite material engineered for flexible duct applications in HVAC systems, combining durability with superior thermal properties.

Product Overview

Flexible Duct Single Side Polyester + Aluminum Foil Laminated Film Material is a specialized composite designed for flexible ducts, particularly in HVAC systems.

Material Composition

Polyester (PET) Film: Provides high tensile strength, durability, and resistance to moisture and chemicals
Aluminum Foil: Laminated on one side, offering excellent conductivity, heat resistance, and reflective properties

Key Properties

Heat Resistance: Excellent performance in high-temperature environments
Flame Retardant: Enhanced safety features for duct applications
Mechanical Strength: High tensile strength and elongation at break for durability and flexibility
Reflectivity: Aluminum foil layer reflects heat back into the duct to maintain temperature
Water Vapor Barrier: Effectively blocks moisture to prevent condensation and maintain system integrity

Applications

HVAC Systems: Primary use in flexible ducts for heating, ventilation and air conditioning, enabling efficient air distribution while reducing heat loss
Building Insulation: Used in construction insulation to enhance thermal performance and reduce energy consumption

Product Specifications

Color	Silver	Inner Diameter (mm)	38 / 53 / 76 / 152
Slitting Width (mm)	≤1600	Outside Diameter (mm)	≤700
AL Thickness (mm)	0.006~0.05	PET Thickness (mm)	0.012~0.07

Material Structure

Flexible Duct Single Side Polyester+AL Foil Laminated Film Material

Product Display

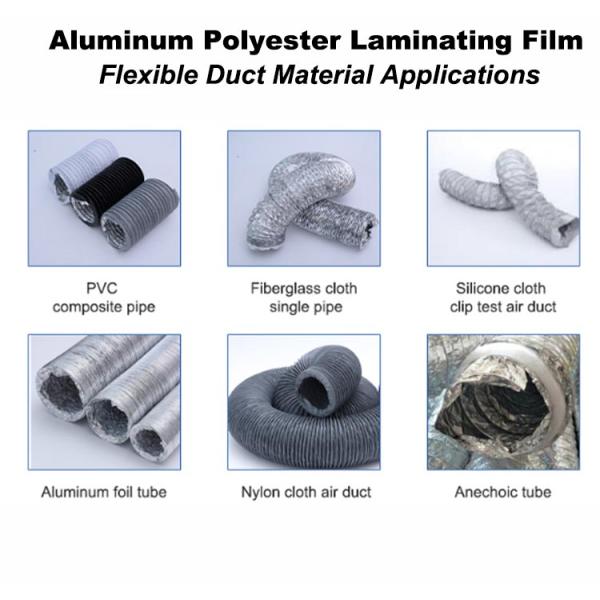

Application Examples

Product Tags:

Polyester AL Foil Laminated Film

Flexible Polyester AL Foil Laminated Film

Flexible Duct Single Side Polyester+AL Foil Laminated Film Material Images
